Chinese SPT™ platform
A cost-effective solution for VRU testing that enhances the safety, efficiency, and repeatability of vehicle testing.
Product overview

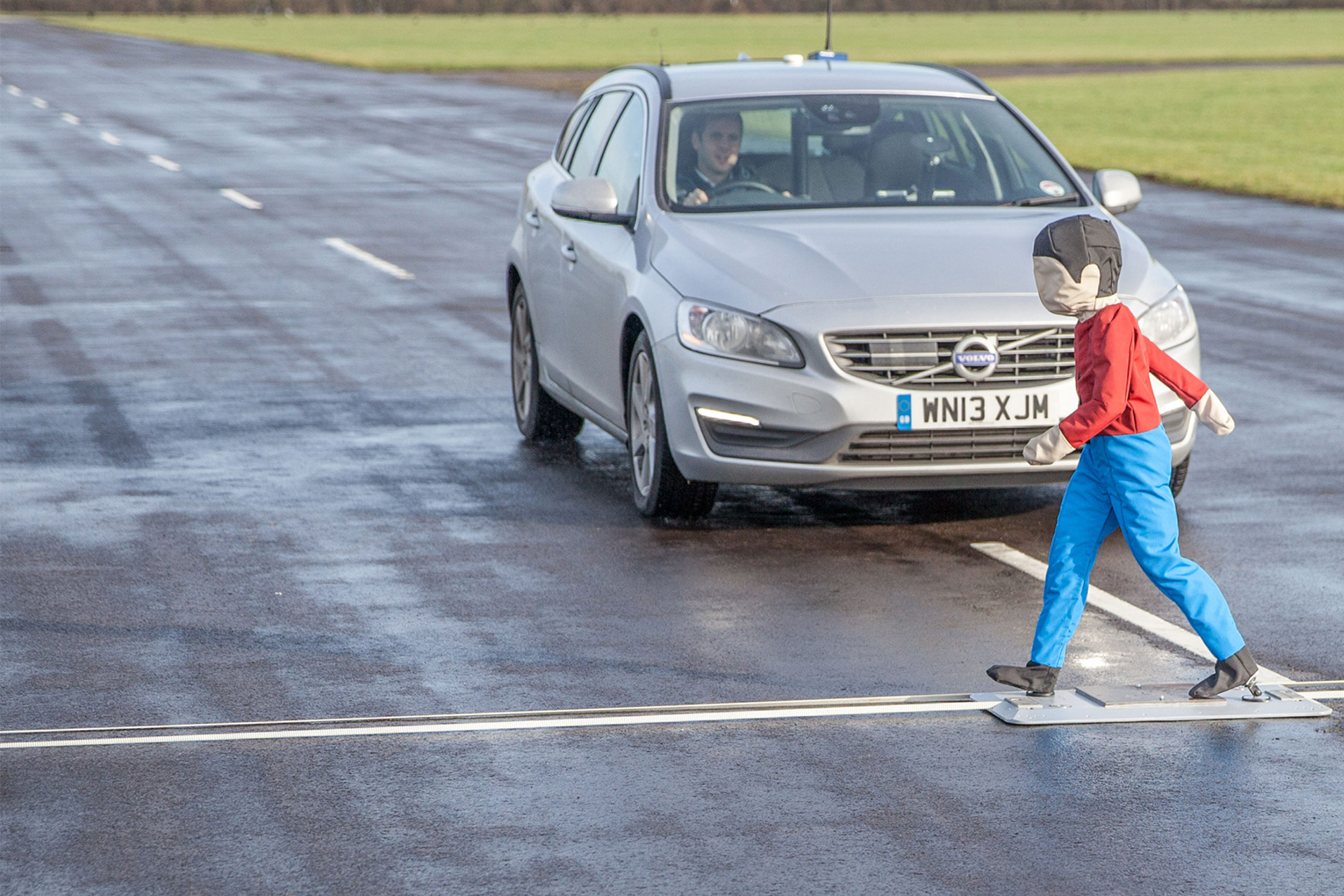

The SPT platform is a portable belt propulsion mechanism that can simulate the movement of pedestrians or cyclists in front of or parallel to a vehicle. Using our Synchro technology, it plays out NCAP and custom test scenarios accurately and consistently. Scenarios are programmed using Robot Controller (RC) Software, which seamlessly manages the planning, execution, and review of track tests. RC comes with special groups, a library of predefined scenarios to speed up NCAP testing.
The SPT system is ideal for testing the performance of Automatic Emergency Braking (AEB), Forward Collision Warning (FCW) and Blind Spot Monitoring (BSM) systems.
The SPT can carry different types of dummies and has a single-belt option for motion parallel to the subject vehicle. SPT models can specified with a dedicated electric motor or connected to a customer’s existing steering robot to provide smooth and precise motion.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information
Specifications
The SPT is used around the world by the organisations including Euro NCAP labs, NHTSA, Transport Canada, CATARC and KATRI.
Dimensions, performance and compliance
Sled height
25 mm
Position measurement
Uses motor encoder: Typical dynamic accuracy at platform better than 2 cm
Maximum rated speed
20 km/h with 15 kg payload
Maximum acceleration
0.8 g with 15 kg payload
System protection
In-built belt tension measurement system checks belt and stops motor if belt tension changes significantly
Mains power pack required
Recommended for longer runs at maximum performance
Euro NCAP 2023 protocol?
Yes
Euro NCAP TB 029?
Yes
