Chinese CBAR 600L
Offering the same brake performance as the CBAR 600 but in a more compact package, the CBAR 600L is ideal for AEB tests and other ADAS testing.
Product overview

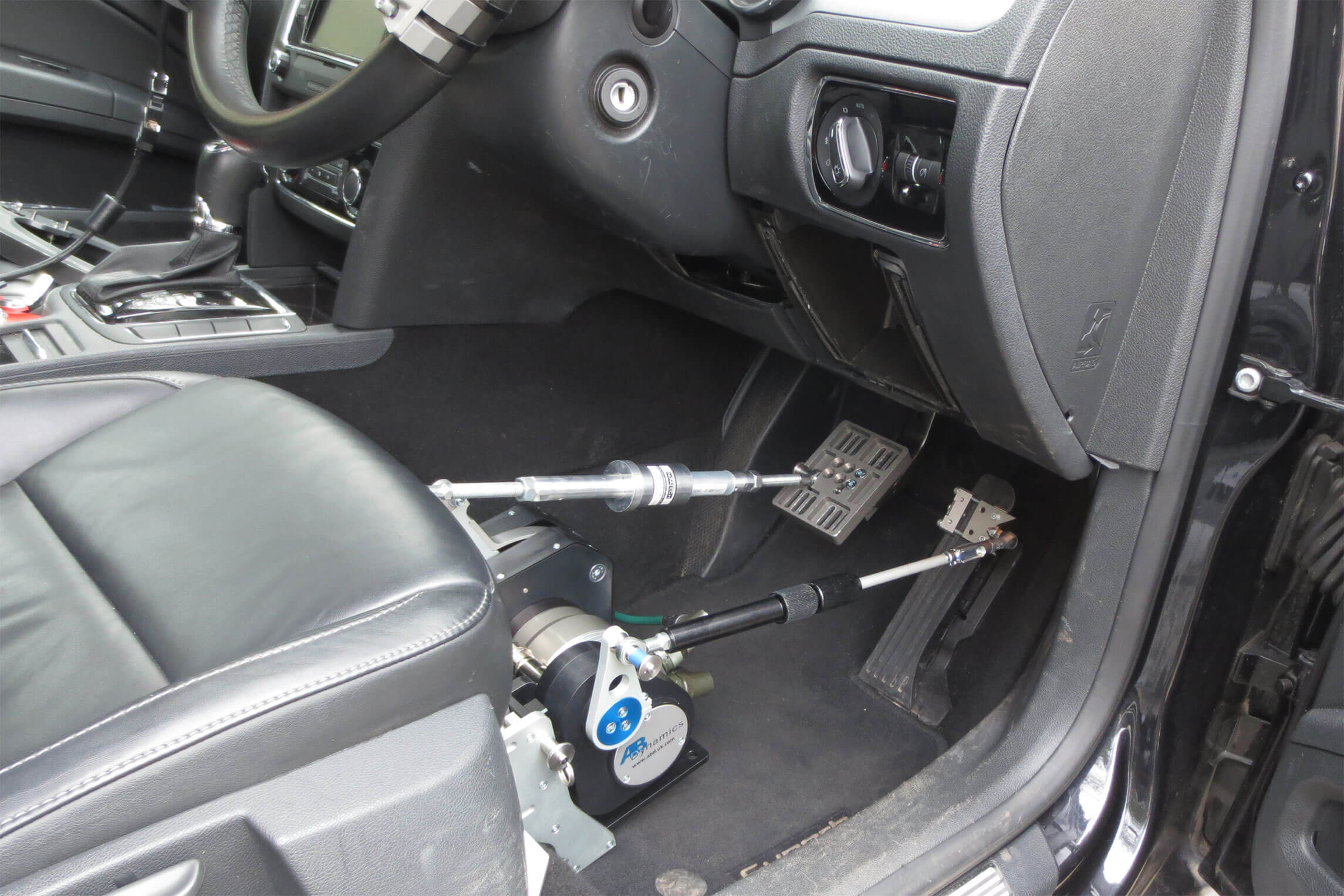

With a lower-profile actuator for improved driver ergonomics, the Combined Brake and Accelerator Robot (CBAR) 600L is a development of the original CBAR 600. With a more compact footprint, it is more comfortable for a driver, especially in vehicles with lower seating positions.
Like the CBAR 600, the CBAR 600L can perform vehicle speed control tests with precision, reliability, and efficiency, and can also be easily configured and controlled with our RC Software, which offers predefined templates for C-NCAP, Euro NCAP, JNCAP, NHTSA test scenarios and UN requirements, as well as custom options. Not only does this functionality save time and effort for the operator but also gives more flexibility and control over test criteria.
Specifications
The CBAR 600L is a compact and low-profile robot that can control both the brake and accelerator pedals of a vehicle with precision and consistent speed control.
CBAR 600L Robot
Maximum brake apply force
750 N
Apply rate at max force
1000 mm/s
Maximum apply rate
1300 mm/s
Apply force at max apply rate
500 N
Maximum throttle force
175 N
Maximum throttle speed
715 mm/s
Maximum throttle stroke
125 mm
Typical use cases
Steering feel, handling dynamics, NCAP assessment, anti-lock braking, EV and hybrid evaluation, brake feeling development and brake assist
