Chinese SR 60 Orbit™
A geared steering robot that can be installed without removing the airbag, the SR 60 Orbit is ideal for vehicles with limited space.
Product overview

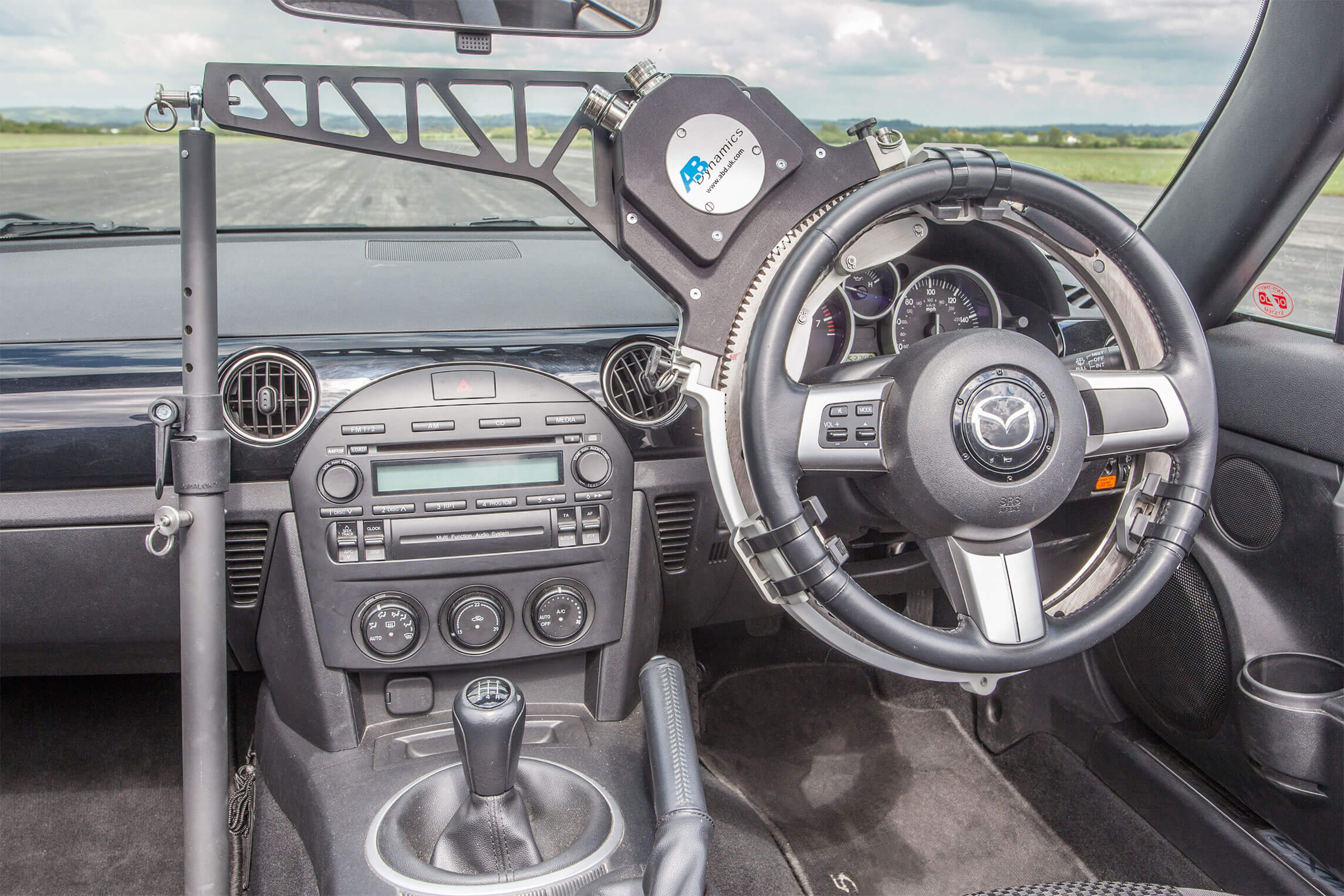

The SR 60 Orbit delivers the high torques necessary for limit testing and can be installed in vehicles without removing the steering wheel airbag. The gear ring can be separated into two halves, offering the option of ergonomic mounting behind the steering wheel. This prevents the obstruction of sensors and allowing full access to the steering controls. Alternatively, the SR 60 can be mounted in front of the rim to avoid interference with the dash or stalks. The SR 60 is suitable for a wide range of testing including legislative tests such as the fishhook and sine-dwell manoeuvres.
Specifications
The SR 60 Orbit provides up to 70 Nm of torque and 2000°/s of velocity.
The SR 60 Orbit Steering Robot
Direct drive motor
No
Hollow for use with airbag in place
Yes
Suitable for sine-dwell/fishhook
Yes
Max torque (short duration)
70 Nm at 580°/s
Rated torque
60 Nm at 1300°/s
Max velocity
2000°/s (est.) at up to 35 Nm
Motor weight
8 kg
Adaptable for heavy vehicle testing
No
